Are you a controller in the other VATSIM division and want to provide ATC in Ukraine?
Join our visiting controllers team!
Firstly, you need to register on VATSIM network, if you didn't do it yet. Just follow our link here. We will bring you right to the registration form, where you just need to put some information about you. Please fill in all the fields with true information about yourself and wisely choose your division.
As long as Ukraine is a member of a VATEUD division in VATSIM, to become a controller here your VATSIM account should have the following settings: Region - Europe, Middle East and Asia (EMEA), Division - Europe (except UK). To check your current settings please follow the link here. In case you need to change your settings, you are able to do it on the same page.
Everyone has their own workspace, pilots have simulator and controllers have client. For the VATSIM network there are a few clients exists and the most popular of them is EuroScope. We are also using EuroScope to provide our control, so please follow the link and download your copy here.
The major difference between pilots and controllers in the network is that you can not log in as a controller from the very beginning. To provide air traffic control you will need special training and clearance. There are a number of different ATC positions and ratings that corresponds to them. Here is a list of all the ratings and their responsibilities.
|Student 1||Delivery/Ground||Provide clearance for the departing traffic, and controls taxi from stand to the active runway and backwards.|
|Student 2||Tower||Controls airplanes on the runway - allows takeoffs and ladings and manage airspace in the aerodrome area.|
|Student 3||Approach/Departure||Provides departure and arrival for aircrafts. Controls all the air traffic in the limited airspace.|
|Controller||Control||Provides service for the aircrafts following the route and transit aircrafts.|
|Instructor||Training center||Mentor the new coming controllers and allows their exams.|
This way the responsibility is getting bigger with higher rating. As a newcomer you are allowed to get your Student 1 rating, that allows you to control aircrafts on the ground.
Now let's talk how are you going to get your rating ...
First of all, you should sign in at out ATC management system here This will be your main work place where you going to study and pass exams. Now let's find an instructor.
Go to the USERS section of the website and check with the instructors list. You can contact any of available instructors. Their contacts are provided there as well.
As you already realized, to get your first rating you will have to pass an exam.
Student 1 exam consists only the questioning part. You will have to answer 20 questions, if you guess 15 or more questions right the test is passed.
To prepare for the test we provide you a study plan, that is also available on the ATC management system. It is a list of documents and particular sections that you should be familiar with to pass the test successfully.
Be aware that tests are created using only the material listed in the study plan, and the test is fully independent from the instructor, so no one can actually affect your test results. Everything depends only on you and your knowledge.
To pass the test use the button on the dashboard page of management system. When the instructor approves your attempt, you will be able to pass it. We wish you a good luck!
When you pass the test successfully, your instructor will prepare your rating change. Usually it takes no more than 7 days to approve your rating. When the procedure is finished, you will receive an email regarding the changes.
Since this moment you are officially an air traffic controller!

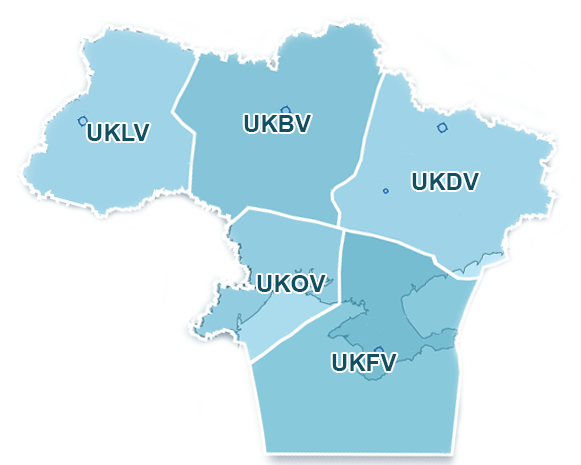

Each FIR is also a control area which is served by a controller.
Since VATSIM rules are following the path not to involve into politics and not to get into any conflict situations we use the airspace structure dated 2012, which is not fully corresponds to current real life structure.
Each flight information region are also divided into terminal areas TMA, that serves precise aerodromes. Their borders can be determined on the Enroute charts. We provide you with the list of main ATC positions, their frequencies and callsigns for every FIR.
|UKBV_CTR||135.150||CTA Kyiv (generic)||Kyiv Radar|
|UKBV_APP||124.670||TMA Kyiv (generic)||Kyiv Radar|
|UKBV_1_APP||127.720||TMA Kyiv BV-1||Kyiv Radar|
|UKBV_2_APP||124.670||TMA Kyiv BV-2||Kyiv Radar|
|UKBB_APP||122.770||TMA Kyiv (generic)||Kyiv Radar|
|UKBB_3_APP||128.120||TMA Kyiv BV-3||Kyiv Radar|
|UKBB_4_APP||122.770||TMA Kyiv BV-4||Kyiv Radar|
|UKDV_CTR||125.120||CTA Dnipro (generic)||Dnipro Radar|
|UKDD_APP||119.400||TMA Dnipro||Dnipro Radar|
|UKHH_APP||133.900||ТМА Kharkiv (generic)||Kharkiv Radar|
|UKHH_1_APP||118.100||ТМА Kharkiv||Kharkiv Radar|
|UKHH_2_APP||133.900||ТМА Kharkiv||Kharkiv Radar|
|UKDE_APP||119.200||ТМА Zaporizhia||Zaporizhzhia Radar|
|UKFV_CTR||120.400||CTA Simferopil (generic)||Simferopil Radar|
|UKFF_APP||124.700||ТМА Simferopil (generic)||Simferopil Radar|
|UKOV_CTR||132.200||CTA Odessa (generic)||Odessa Radar|
|UKOO_APP||120.900||ТМА Odessa (generic)||Odessa Radar|
|UKLV_CTR||134.050||CTA L'viv (generic)||L'viv Radar|
|UKLL_APP||120.525||ТМА L'viv (generic)||L'viv Radar|
The information regarding Tower, Ground, Delivery, ATIS you may find using the aerodrome charts.
In the VATSIM network to provide a better ATC coverage in Ukraine, we use such an ATC position as Ukraine Radar.
The area of responsibility of such a controller will be all the five flight information regions (UKBV, UKDV, UKFV, UKOV, UKLV) if local ATC is offline. This way the single air traffic controller can provide a service in whole the country.
As a condition, a controller may choose his vertical borders and provide service either from the ground or from the specific altitude/flight level. This information should be posted in ATC remarks.
This position has it's own frequency.
|UKR_CTR||123.470||CTA Kyiv, СТА Dnipro, СТА Simferopil, СТА Odessa, СТА L'viv||Ukraine Radar|

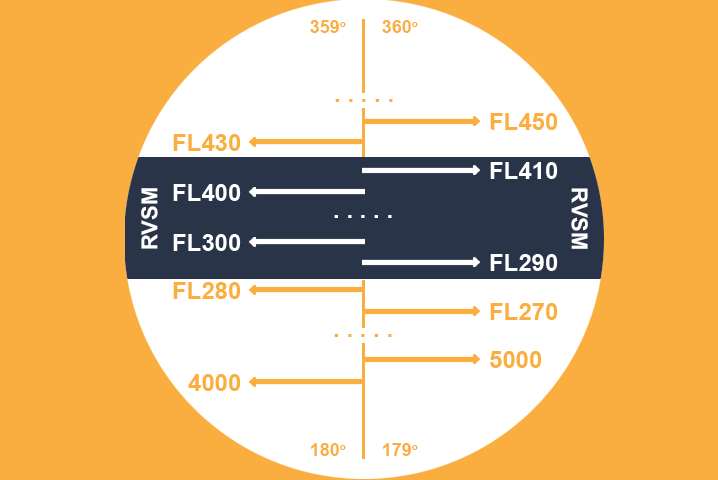

In Ukraine a standard semi-circular ICAO system of vertical separation is used. With the division for WESTBOUND (180-359 degrees) / EASTBOUND (360-179 degrees) flights. The measurement unit is feet. All the aircrafts flying westbound should use even flight level, eastbound flights are served with odd flight levels.
Minimum vertical separation below FL290 is 1000 feet. Between flight levels FL290 and FL660 the minimum separation is increased to 2000 feet.
Between FL290 and FL410 RVSM (Reduced Vertical Separation Minimums) is used, therefore the minimum separation in this layer is 1000 feet.
|ENR 1.1 - General rules|
|ENR 1.2 - Visual flight rules|
|ENR 1.3 - Instrument flight rules|
|ENR 1.4 - ATS airspace classification|
|ENR 1.5 - Holding, approach and departure procedures|
|ENR 1.6 - ATS surveillance service and procedures|
|ENR 1.7 - Altimeter setting procedures|
|ENR 1.8 - Regional supplementary procedures|
|ENR 1.9 - Air traffic flow management|
|ENR 1.10 - Flight planning|
|ENR 6.1 - Enroute chart (2020-12-31)|
|Наказ #478 - Про затвердження Правил польотів цивільних повітряних суден у повітряному просторі України|
|Наказ #486 - Про затвердження Правил ведення радіотелефонного зв'язку та фразеології радіообміну в повітряному просторі України|
|Наказ #521 - Про затвердження Правил обслуговування повітряного руху з використанням систем спостереження|
